257 AMP AL SPEED ONE

POWDER ANTHRACITE

Bosch Performance Line Speed Drive Unit
ICS MTT x Redshift Suspension Stem
SHIMANO Cues 11 spd Drivetrain

Regular priceUSD 5,999.00
USD /

SKU: 30002865
Size

257 AMP AL SPEED ONE

Parts & Accessories

  • Shipped to your local bike shop

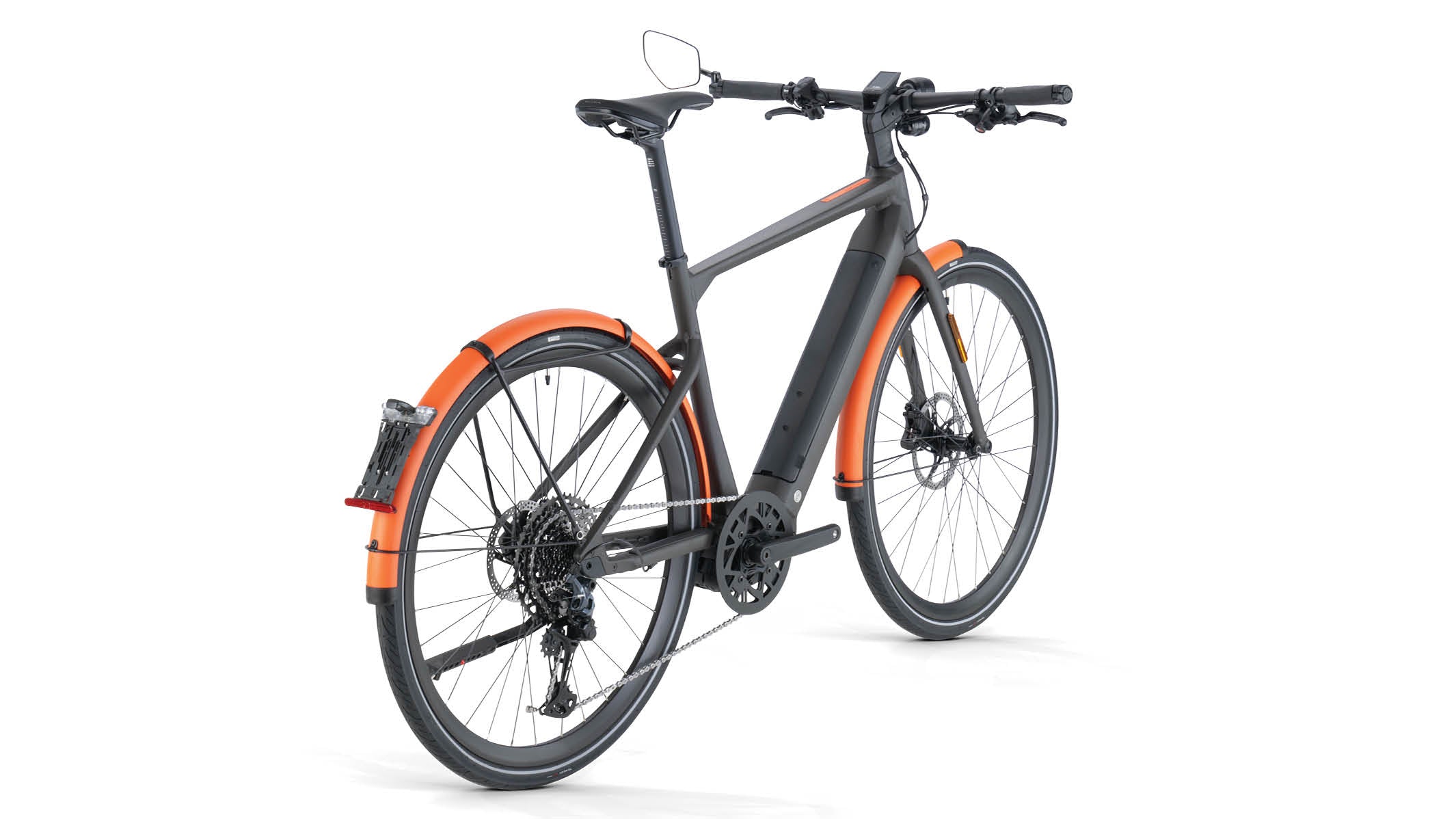

The 257 AMP AL SPEED swiftly and safely transports you from A to B. Its clean, detailed design and seamless functionality are embodied in the Premium Aluminium frame with a durable powder-coated finish. The BOSCH Performance Line speed motor propels you to 45km/h, delivering a joyful, elegant feeling of velocity and safety. The ICS MTT x Redshift Stem and premium lights enhance comfort, providing a perfect fusion of style and function for your riding pleasure.

Technology

Technical Overview

Frameset

Frame:
257 AMP Premium Aluminium | Smoothwelded | Integrated Battery | Internal Cable Routing | Powder Coat Finish | Post Mount Disc | 12 x 142mm Thru-Axle

Fork:
257 Premium Aluminium | Fender Mounts | Post Mount Disc | 12 x 100mm Thru-Axle

E-System

Drive Unit:
Bosch Performance Line Speed

Battery Pack:
Bosch PowerTube | 625 Wh

Display:
Bosch Kiox

Drive Unit Control:
Bosch Kiox

Charger:
Bosch Compact Charger

Cockpit

Stem:
ICS MTT x Redshift Suspension Stem | Integrated Cockpit System Technology

Handlebar:
BMC LSB 01

Seat

Seatpost:
BMC LSP 02

Saddle:
Selle Royal Vivo

Drivetrain

Crankset:
Miranda Classic x Bosch | CF3D

Chainrings:
46T

Cassette:
SHIMANO CUES (CS-LG700-11)

Cassette Size:
11-50T

Chain:
SHIMANO CUES CN-LG500

Rear Derailleur:
SHIMANO CUES (RD-U8000)

Shifters:
SHIMANO CUES (SL-U8000)

Gears:
1 x 11

Brakes

Brake Levers / Calipers:
TEKTRO TRP HD

Rotors:
TEKTRO

Rotor Size (F/R):
180 / 160mm

Wheels

Rims:
E-SRX30

Hubs (F/R):
CL-712 | ECT-142S

Tires:
Pirelli Angel GT | 37mm

Additional Information

Tire Clearance:
42mm

ASTM Classification:
Level 2

System Weight Limit:
120kg

Size S M L XL
Rider Height <168 168-180 178-190 >190
Reach 424 424 425 436
Stack 560 590 620 645
Bar Width 680 680 680 680
BB Drop 67 67 67 67
Crank Length 170 170 170 170
Fork Length 408 408 408 408
Fork Rake 45 45 45 45
Front Center 655 665 677 699
Head Tube 133 165 197 225
Head Tube Angle 70 70 70 70
Rear Center 440 440 440 440
Seat Angle 75 75 75 75
Seat Tube 480 510 540 570
Seatpost Length 350 350 350 350
Seatpost Offset 15 15 15 15
Standover Height 766 794 819 847
Stem Angle 0 0 0 0
Stem Length 70 70 80 90
Top Tube 574 582 591 609
Trail 75 75 75 75
Wheelbase 1085 1096 1108 1129
