Technical Overview
Frameset

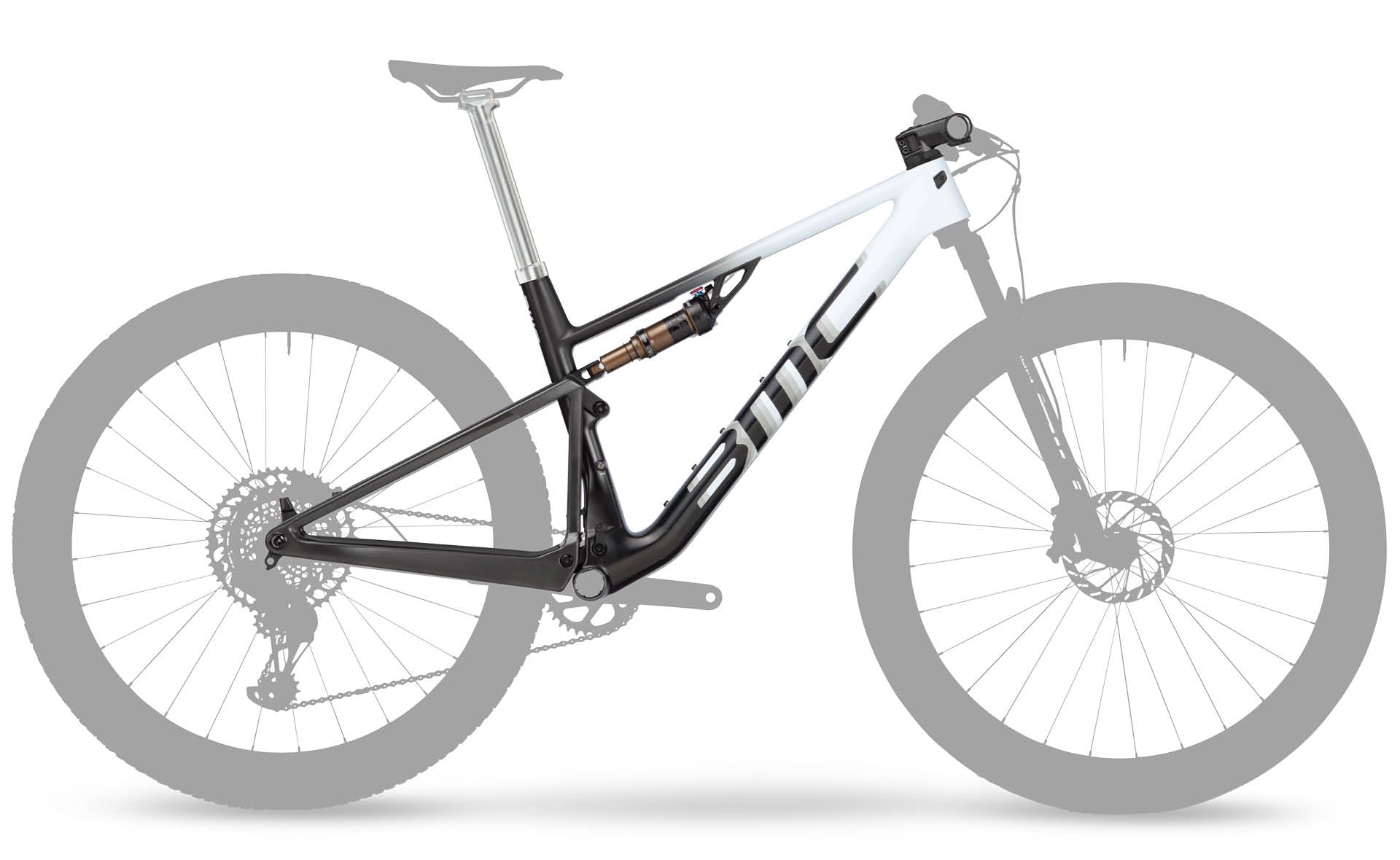

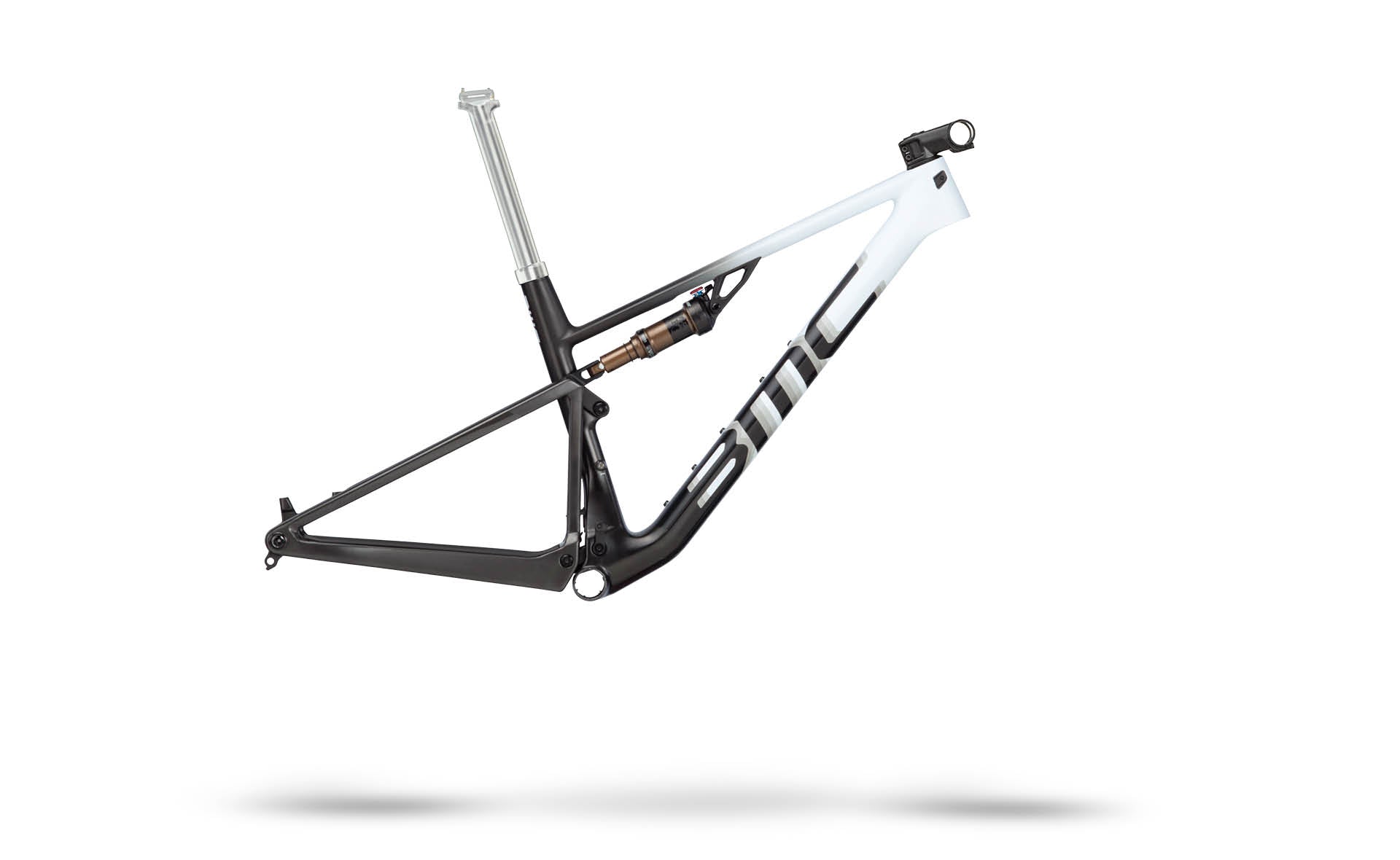

Frame:
Fourstroke 01 Premium Carbon with Autodrop Technology | APS Suspension System | 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle
Suspension
Rear Suspension:
Fox Float DPS Factory | Kashima Coating
Cockpit
Stem:
BMC MSM 01
Seat
Seatpost:
BMC Autodrop Integrated Dropper Seatpost | 80mm Drop
Additional Information
Tire Clearance:
62mm measured tire
Weight:
2.94 kg
ASTM Classification:
Level 3
System Weight Limit:
110kg
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height | <172 | 172-182 | 180-188 | >188 |
| Reach | 437 | 457 | 477 | 500 |
| Stack | 584 | 592 | 600 | 615 |
| BB Drop | 53 | 53 | 53 | 53 |
| Fork Length | 513 | 513 | 513 | 513 |
| Fork Rake | 44 | 44 | 44 | 44 |
| Front Center | 714 | 738 | 762 | 791 |
| Head Tube | 84 | 93 | 101 | 118 |
| Head Tube Angle | 66.5 | 66.5 | 66.5 | 66.5 |
| Rear Center | 432 | 432 | 432 | 432 |
| Seat Angle | 75.6 | 75.6 | 75.6 | 75.6 |
| Seat Tube | 420 | 440 | 470 | 510 |
| Seatpost Drop | 80 | 80 | 80 | 80 |
| Seatpost Length | 389 | 414 | 414 | 414 |
| Seatpost Offset | 0 | 0 | 0 | 0 |
| Standover Height | 725 | 725 | 725 | 725 |
| Stem Angle | -5° | -5° | -5° | -5° |
| Stem Length | 50 | 60 | 60 | 70 |
| Top Tube | 574 | 597 | 621 | 649 |
| Trail | 113 | 113 | 113 | 113 |
| Wheelbase | 1139 | 1171 | 1188 | 1218 |
