A lightweight aluminium frame, with a premium durable powder coating and a dedicated geometry to smaller riders. Featuring 20” wheels, an 8-speed SRAM groupset and TEKTRO brakes, with tailored ergonomics for a confidence inspired ride. Simple. Functional. Fun.
Technology

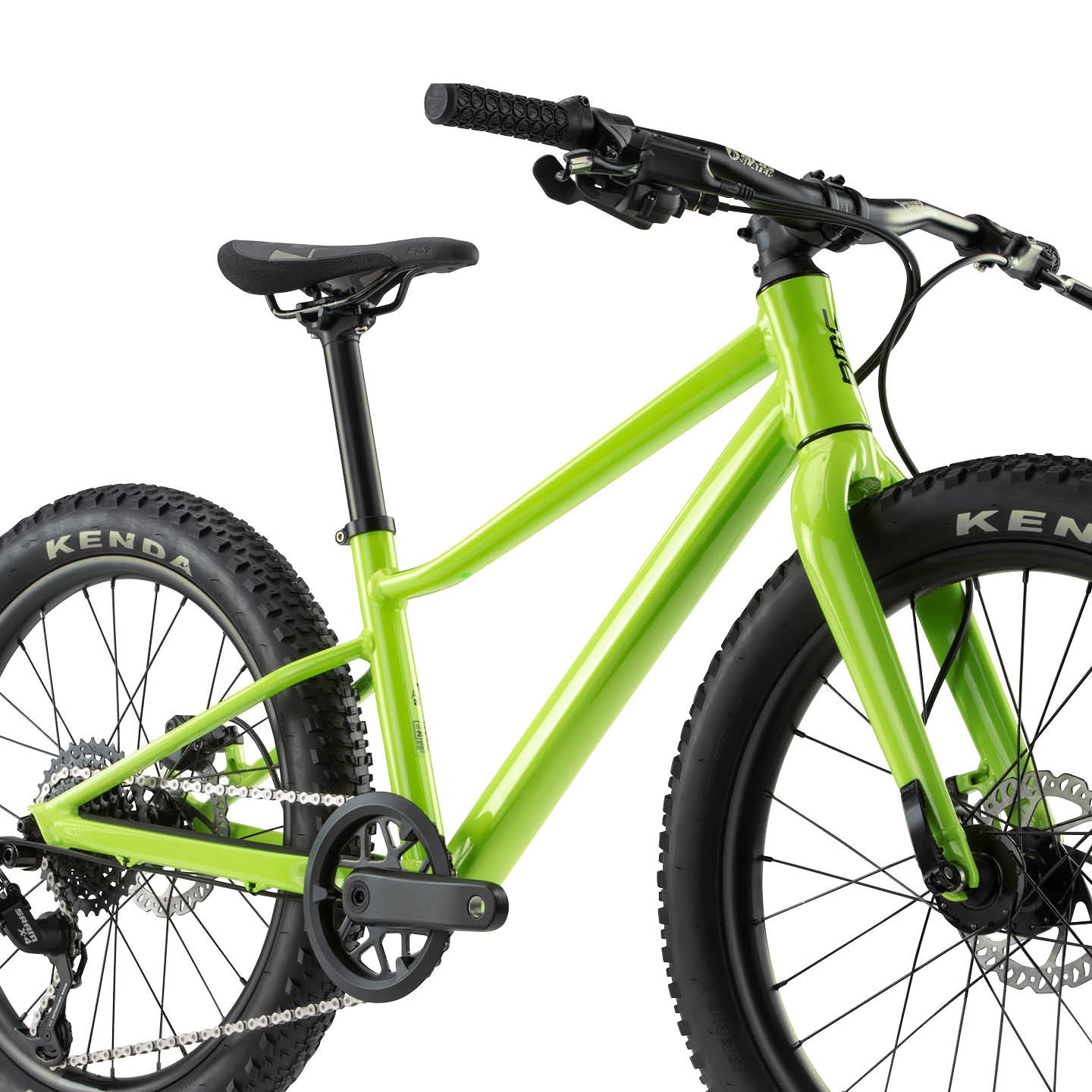

Lightweight Frame

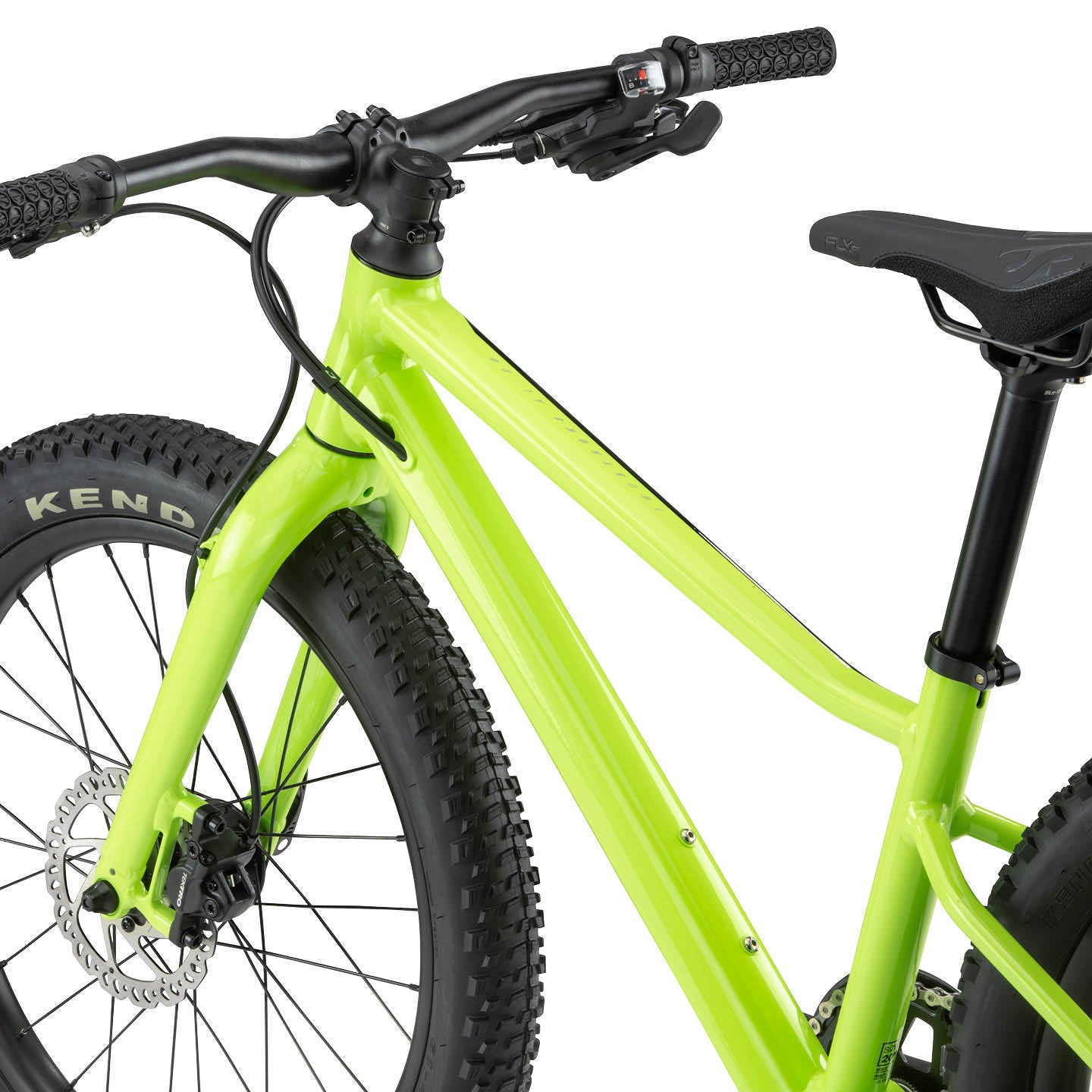

Tailored Ergonomics

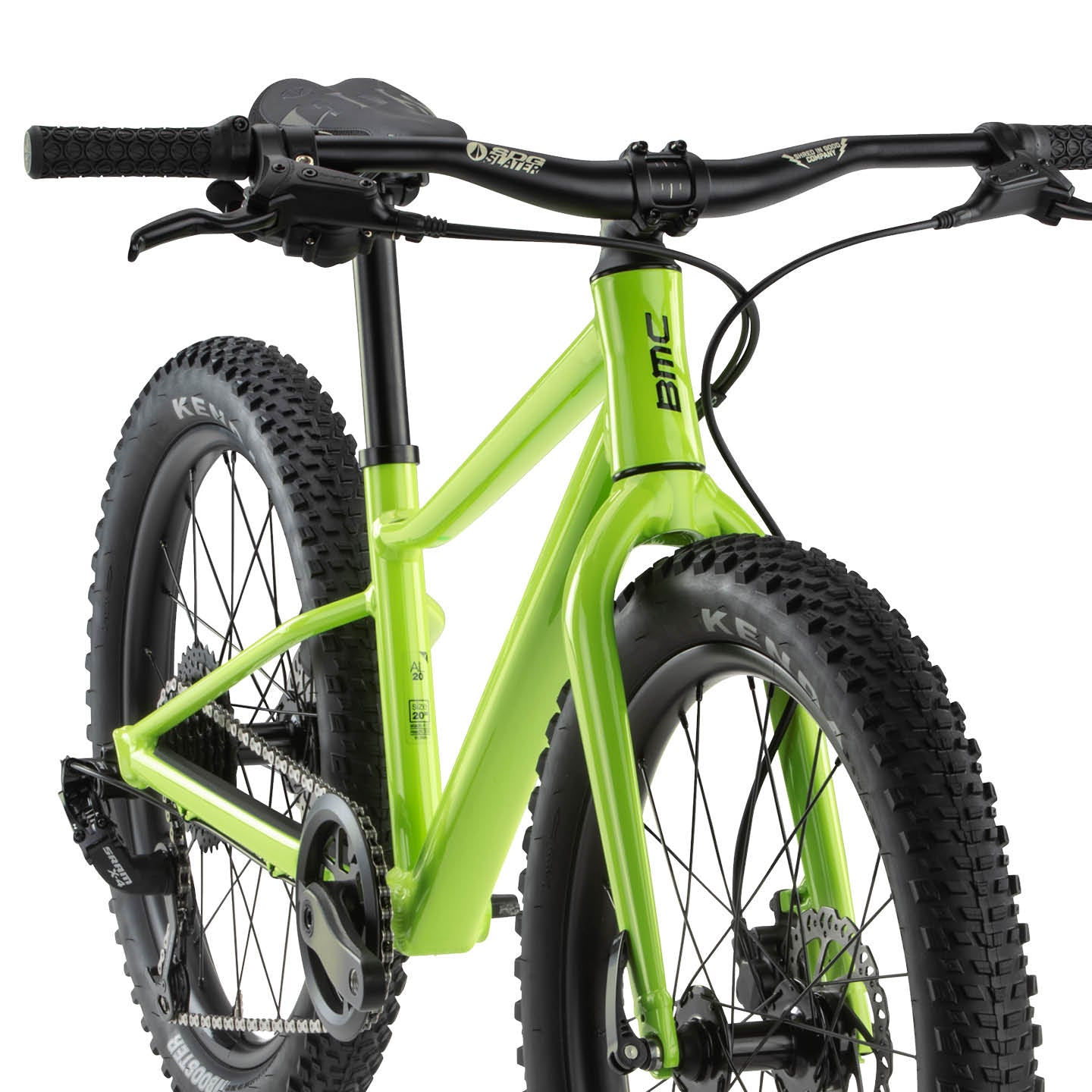

Dedicated Geometry

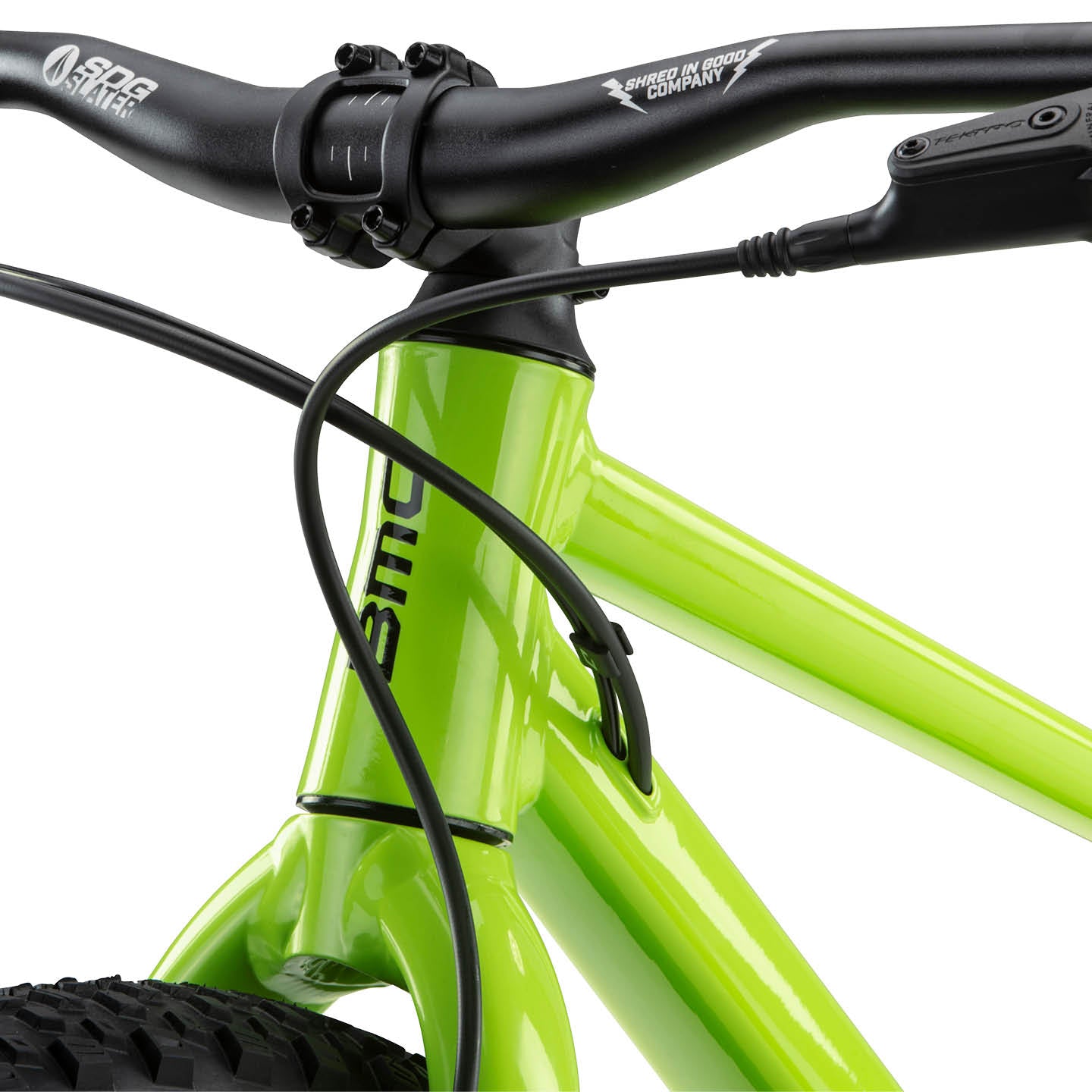

Powder Coat Finish
Technical Overview
Frameset
Frame:
Twostroke AL 20" Lightweight Aluminium with Powder Coat Finish | 1 1 / 8" Head Tube | 140mm Post Mount | 9 x 135mm QR
Fork:
Twostroke AL 20" Lightweight Aluminium with Powder Coat Finish | 140mm Post Mount | 9X100mm QR
Cockpit
Stem:
BMC | 35mm Length | 6° Angle
Handlebar:
SDG Slater Handlebar | 650mm Wide | 20mm Rise | 19mm Bar Ends | 31.8mm Clamp.
Seat
Seatpost:
Alloy | 27.2mm
Saddle:
SDG Fly Jr
Drivetrain
Crankset:
Lightweight Forged Alloy Cranks
Chainrings:
SRAMrings
Cassette:
Sunrace
Cassette Size:
11-34T
Chain:
SRAM
Rear Derailleur:
SRAM X4 | Medium Cage
Shifters:
SRAM X4 Trigger
Gears:
1 x 8
Bottom Bracket:
BSA Threaded Bottom Bracket
Brakes
Brake Levers / Calipers:
TEKTRO HD-M286 | Short Reach Levers
Rotors:
TEKTRO TR140-22
Rotor Size (F/R):
140mm
Wheels
Rims:
DD32
Hubs (F/R):
CNC Machined Alloy Hub Body | Sealed Bearings | Quick Release
Tires:
Kenda Booster | 20 x 2.4"
Additional Information
Tire Clearance:
58mm measured tire
Weight without Pedals:
8.6 kg (w/o pedals)
ASTM Classification:
Level 3
System Weight Limit:
60kg
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | 20 inch |
|---|---|
| Rider Height | 110-135 |
| Reach | 305 |
| Stack | 412 |
| Bar Rise | 20 |
| Bar Sweep | 5 |
| Bar Width | 650 |
| BB Drop | 40 |
| Crank Length | 127 |
| Fork Length | 307 |
| Fork Rake | 35 |
| Front Center | 455 |
| Head Tube | 105 |
| Head Tube Angle | 68 |
| Rear Center | 342 |
| Seat Angle | 73 |
| Seat Tube | 275 |
| Seatpost Length | 300 |
| Seatpost Offset | 15 |
| Standover Height | 490 |
| Stem Angle | ±6 |
| Stem Length | 35 |
| Top Tube | 431 |
| Trail | 66 |
| Wheelbase | 833 |
